EVO

3D printable modular motorized flight Trainer designed by René Marschall

Wingspan: 1155 mm (45.5 inches)
Flight weight: 1050 grams
Wingload: 50g/dm2
Motorization: 3S or 4s
6 or 7 channels (flap version)
Material: LW-PLA 350g/PLA 200g/TPU 100g
Printer space of 180x180x180 mm (cube)

PLANEPRINT EVO – Our Most Versatile Model

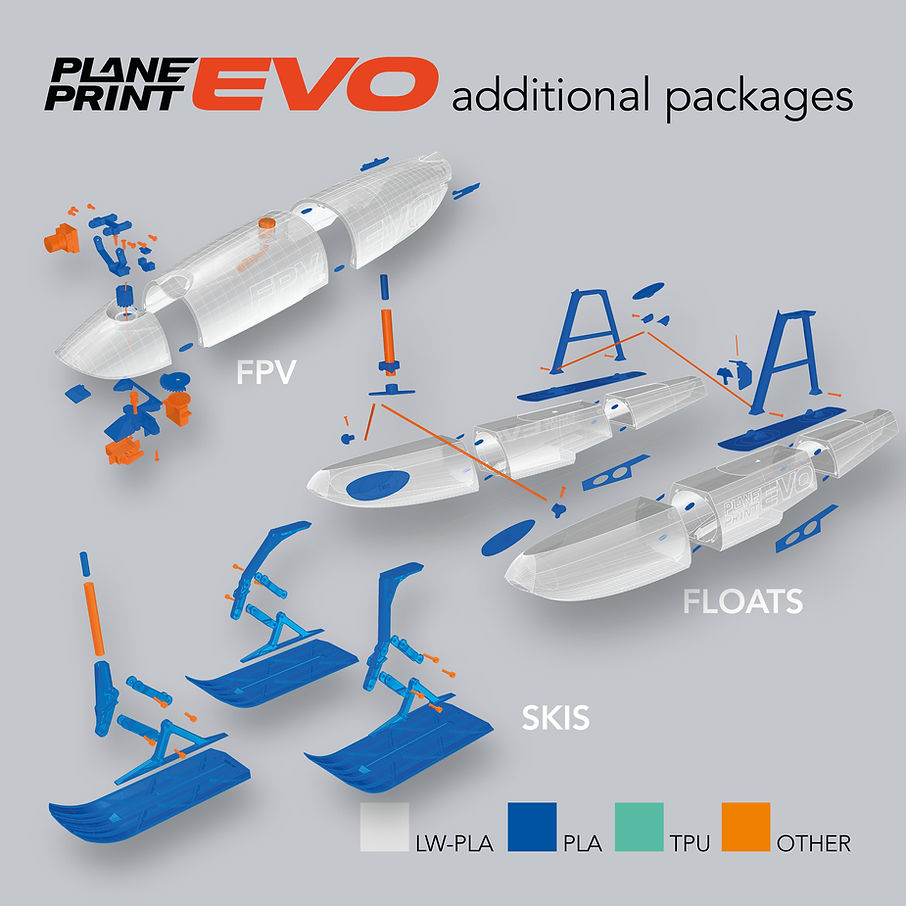

The PLANEPRINT EVO is currently our most adaptable and multifunctional aircraft. Originally designed as an easy-to-fly trainer, it can be upgraded in various directions with optional add-on kits. Whether you want to convert it into a seaplane, use it as an FPV platform, or equip it with skis for winter flying, with additional packages the EVO is ready for it all.

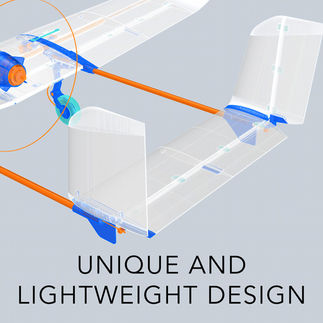

Smart Design for Maximum Flexibility

Its distinctive design is the result of a carefully balanced compromise aimed at supporting multiple use cases. For clear forward visibility in FPV setups, the motor is mounted in a rear-facing pusher configuration.
The download includes build options with or without flaps – but trust us, flying with flaps is even more fun!

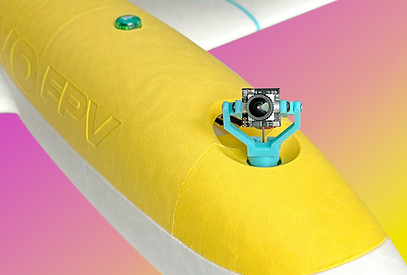

Customizable for FPV and CAD Users

The FPV expansion pack includes STEP files of the canopy, allowing CAD-savvy users to customize the design to suit their specific requirements.

Rugged, Easy Assembly – No Tools Needed

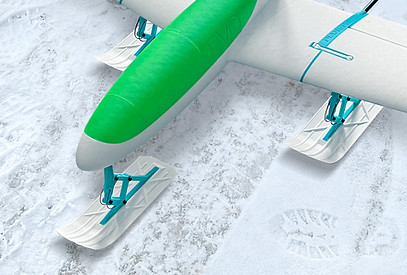

The landing gear and optional skis feature the proven PLANEPRINT suspension system, built to absorb even rough landings with ease. Assembly is completely tool-free and can be completed in just a few simple steps.

Beginner-Friendly, Fully Aerobatic

With its gentle flight characteristics and low wing loading, the EVO is an excellent choice for beginners – especially those with glider experience – and still offers full aerobatic capability.
Thanks to its tricycle landing gear, takeoffs and landings feel like flying a commercial airliner.

Ready for the Future

Additional expansion kits are already in the works – including longer wings for increased lift, better payload capacity, and slower, more energy-efficient flight. That means your EVO will continue to grow with you and stay exciting for years to come!
